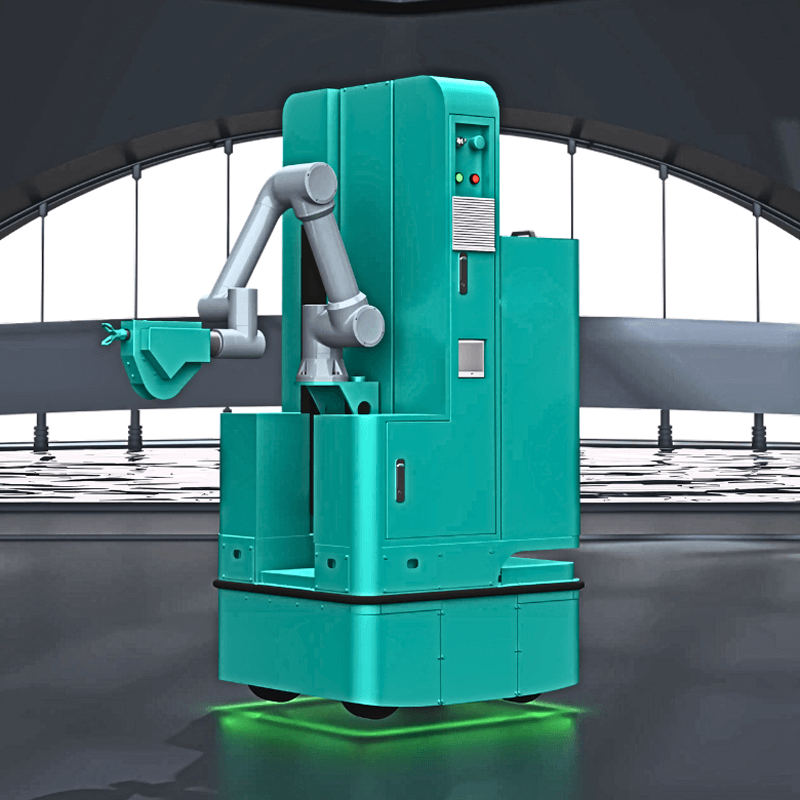

3.2-meter Spraying Construction AI Robot
The robot is suitable for scenarios with a height of less than 3.2 meters, such as residential buildings, apartments, dormitories, hotels, public housing, HDB flats, and prefabricated factories. It can complete surface construction on walls, ceilings, corners, bay windows, entrances, and other surfaces. The product is versatile and can achieve multi material spraying by quickly changing the nozzle. It can spray water-based materials such as latex paint, putty, water spray, volcanic mud spray, etc. Through self-developed intelligent control systems and high-quality spraying technology, uniform coating coverage can be achieved, improving construction quality and efficiency. Whether it is large-scale painting or detail processing, it can be quickly and efficiently operated, significantly saving construction time and costs.

Product Description
| 3.2-meter Spraying Construction AI Robot | |||
| Overall Dimensions | 850mm×760mm×1780mm | Overall Weight | ≤500kg |
| Spraying Height | ≤3200mm | Spraying Types | Wall, ceiling, beam, Xuan Guan, bay window, internal corner, external corner |
| Spraying Materials | Latex paint, putty, water | Spraying Modes | Semi – automatic, automatic |
| Spraying Efficiency | Putty: 600 – 800㎡/day; Latex paint: 2000 – 3000㎡/day | Spraying Flow | ≤8L/min |
| Spraying Pressure | ≤22Mpa | Material Barrel Capacity | 50L |
| Battery Capacity | 173Ah (lithium iron phosphate battery) | Endurance Time | ≥5h |
| Chassis Movement Mode | Omnidirectional movement | Chassis Movement Speed | ≤0.5m/s |
