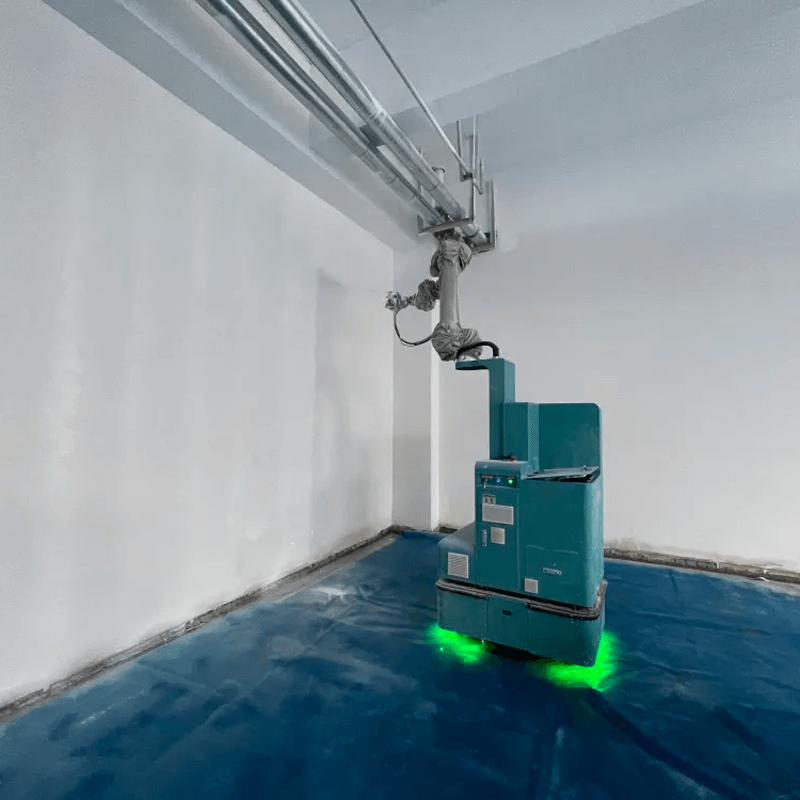

4.6-meter Spraying Construction AI Robot

The robot is suitable for commercial complexes, office buildings, industrial parks, hospitals, schools, hotels, venues, basements and other scenes with a height of less than 4.6 meters. It can complete surface construction of walls, ceilings, beams, columns, internal and external corners, etc. The product is versatile and can achieve multi material spraying by quickly changing the nozzle. It can spray water-based materials such as latex paint, putty, putty, andesite powder, volcanic mud, etc. Through self-developed intelligent control systems and high-quality spraying technology, uniform coating coverage can be achieved, improving construction quality and efficiency. Whether it is large-scale painting or detail processing, it can be quickly and efficiently operated, significantly saving construction time and costs.

4.6-meter Spraying Construction AI Robot

Product Description

4.6-meter Spraying Construction AI Robot
Overall Dimensions 1300mm×830mm×1780mm Overall Weight 600kg
Spraying Height ≤4600mm Spraying Types Wall, ceiling, beam, column, internal corner, external corner
Spraying Materials Latex paint, putty, oil putty, volcanic mud, Anshi powder Spraying Modes Semi – automatic, automatic
Spraying Efficiency Putty: 800 – 1000㎡/day; Latex paint: 2500 – 3000㎡/day Spraying Flow ≤8L/min
Spraying Pressure ≤22Mpa Material Barrel Capacity 60L
Battery Capacity 173Ah (lithium iron phosphate battery) Endurance Time ≥5h
Chassis Movement Mode Omnidirectional movement Chassis Movement Speed ≤0.5m/s
Chassis Obstacle – crossing Height ≥50mm Chassis Ditch – crossing Width ≥50mm
Chassis Wading Depth ≥30mm Chassis Climbing Angle ≤10°
