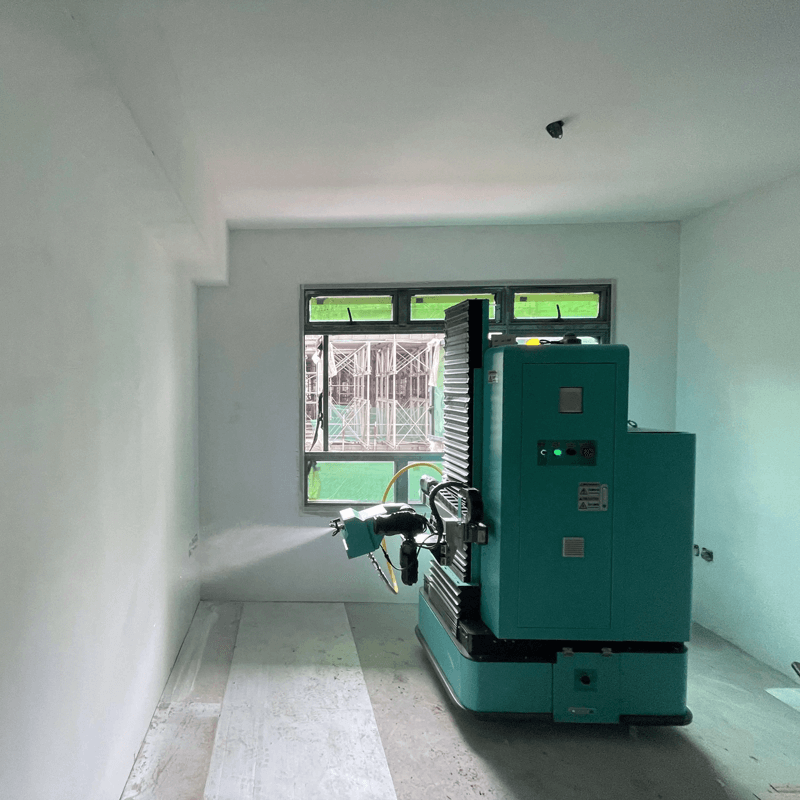

6-meter Spraying Construction AI Robot
The robot is suitable for painting walls and ceilings on floors with a height of less than 6 meters, such as factories, venues, airports, and transportation hubs. This product is versatile and can achieve multi material spraying by quickly changing the nozzle. It can also spray water-based materials such as latex paint and putty. Through self-developed intelligent control systems and high-quality spraying technology, uniform coating coverage can be achieved, improving construction quality and efficiency. Whether it is large-scale painting or detail processing, it can be quickly and efficiently operated, significantly saving construction time and costs.
Product Description
| 6-meter Spraying Construction AI Robot | |||
| Car Body Material | Sheet metal material | Overall Dimensions | 1400mm×1080mm×1780mm |
| Overall Weight | 700kg | Spraying Height | ≤6000mm |
| Spraying Types | Wall, ceiling, beam, column, internal corner, external corner | Spraying Materials | Latex paint, putty, oil putty, volcanic mud, Anshi powder |
| Spraying Efficiency | Putty: 1000 – 2000㎡/day | Power Supply Method | 48V 100AH DC lithium iron phosphate battery pack |
| Endurance Time | 4h | Charging Method | Manual |
| Communication Method | Wifi 2.4GHz/5GHz | Protection Class | IP54 |
| Operation Mode | Four-wheel drive, laser positioning, trackless walking | Maximum Speed | 0.5m/s |
| Positioning Accuracy | ±30mm | Braking Distance | ≤0.1m |
| Turning Radius | Omnidirectional movement, no turning radius | Obstacle – crossing Ability | 50mm |
| Climbing Ability | ≤10° | ||
Product Gallery
