Floor Tile Laying Robot
A building robot for tile laying construction
The robot adopts independently developed large load, lightweight robotic arms and omnidirectional moving chassis, which can carry large-sized floor tiles weighing up to 47.5kg; Equipped with high compatibility end flanges, supporting multiple mainstream tile specifications, suitable for all landscape tiling. At the same time, the robot is equipped with technologies such as ceramic tile adhesive pumping system, open brick storage rack, active and passive safety systems, and quick change power supply system, which can achieve intelligent construction throughout the entire process from substrate treatment to finished product laying. With high compatibility, strong adaptability, and high safety, it helps to promote the intelligent upgrading of the construction industry.
Product Description
Product Features
1.High Efficiency: The efficiency of large-scale construction can reach 120m ²/day, which can replace 3-5 manual workers
2.High Precision: The width error of the brick joint is within ± 0.5 mm, and the height difference between the two bricks is controlled within ± 0.5 mm
3.High Returns: Save over 60% of labor costs and recover equipment costs within one year
Product performance
| Floor Tile Thin Paving Construction AI Robot | |||
| Overall Dimensions | 1300x810x1750 mm | Overall Weight | 870 kg |
| Applicable Tile Type | Ceramic tile | Applicable Tile Specifications | Length: 800 – 1500 mm; Width: 600 – 800 mm |
| Laying Method | Ceramic tile adhesive | Maximum Construction Efficiency | 120 ㎡/d |
| Tile Joint Accuracy | ±0.5 mm (Tile joint width can be adjusted by customers) | Height Difference Between Two Tiles | ±0.5 mm (Manual assistance is required for adjustment in some scenarios) |
| Moving Speed | 0 – 0.7 m/s | Continuous Working Time | 10 h |
| Comprehensive Endurance | 6 h | Power Supply Method | 48VDC |
| Control Method | Remote control or autonomous navigation | Working Mode | Semi – automatic (manual assistance) |
Scope of application
The Floor Tile Laying Robot is designed for floor tiling operations, specifically tailored for the mortar-based installation of full-sized tiles. By simply swapping the flange plate, it can accommodate a wide variety of tile sizes. It is widely utilized for large-scale indoor tiling projects in settings such as apartments, office buildings, shopping malls, and hotels, as well as for tiling applications in airports, train stations, subway systems, and public squares.
Project Case Studies

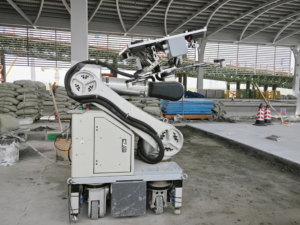

Shanghai Songjiang South Station Project
