Safety Inspection Construction AI Robot
The robot is an automatic inspection robot based on construction site safety management applications, built around the construction process of engineering construction to support on-site safety inspections, intelligent decision-making, and on-site safety control. The product focuses on the unsafe behavior of people and the unsafe state of objects. Centered around personnel management, equipment management, and quality and safety supervision, we aim to achieve information-based, visualized, and intelligent management of on-site personnel, equipment, and construction operations. Through technologies such as AI and mobile robots, we aim to achieve dynamic data display, intelligent warning, effective supervision, and integrated safety management.
Product Description
| Safety Inspection Construction AI Robot | |||
| Car Body Material | Sheet metal material | Overall Dimensions | 650mm×565mm×790mm |
| Overall Weight | 60kg | Camera Accuracy | 400W pixel high-definition camera, 23x optical zoom, with night vision function |
| AI Recognition Types | Safety helmets, reflective clothing, safety belts, masks, smoking, unfastened chin straps, personnel gathering, etc. | PTZ Capability | 360° free rotation horizontally, ±90° pitch, control accuracy of 0.01° |
| Communication Method | Wi-Fi 2.4GHz/5GHz | Environmental Data Monitoring | Temperature, humidity, hazardous and toxic gases, noise, etc. |
| Battery Capacity | 36V DC lithium iron phosphate battery pack | Endurance Time | 4h |
| Chassis Operation Mode | Front-wheel steering, rear-wheel drive | Chassis Movement Speed | ≤1.2m/s |
| Chassis Positioning Accuracy | ±30mm | Chassis Braking Distance | ≤0.1m |
| Chassis Turning Radius | Differential rotation | Chassis Climbing Ability | ≤15° |

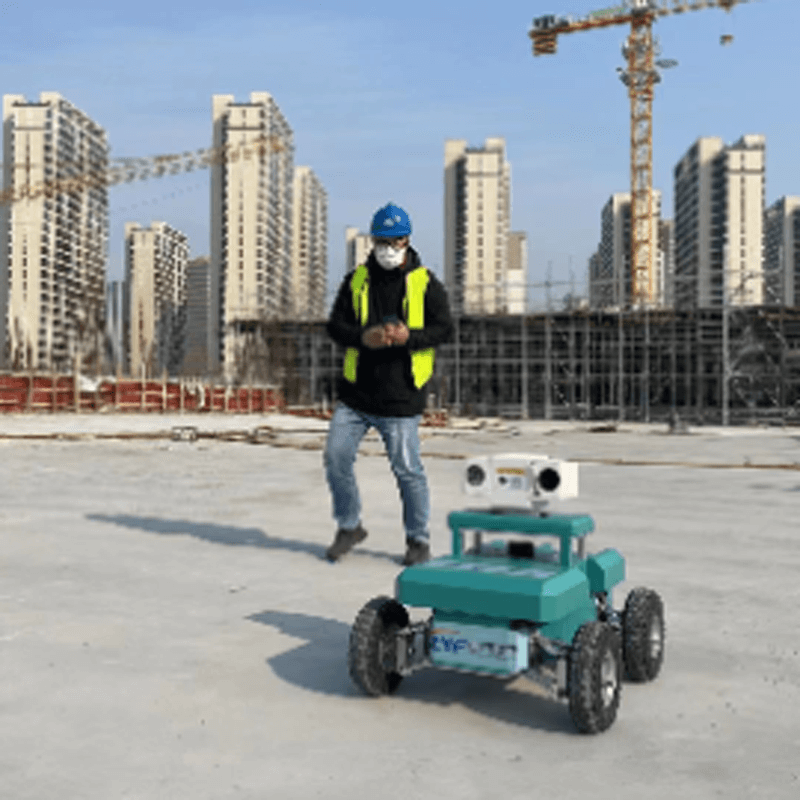

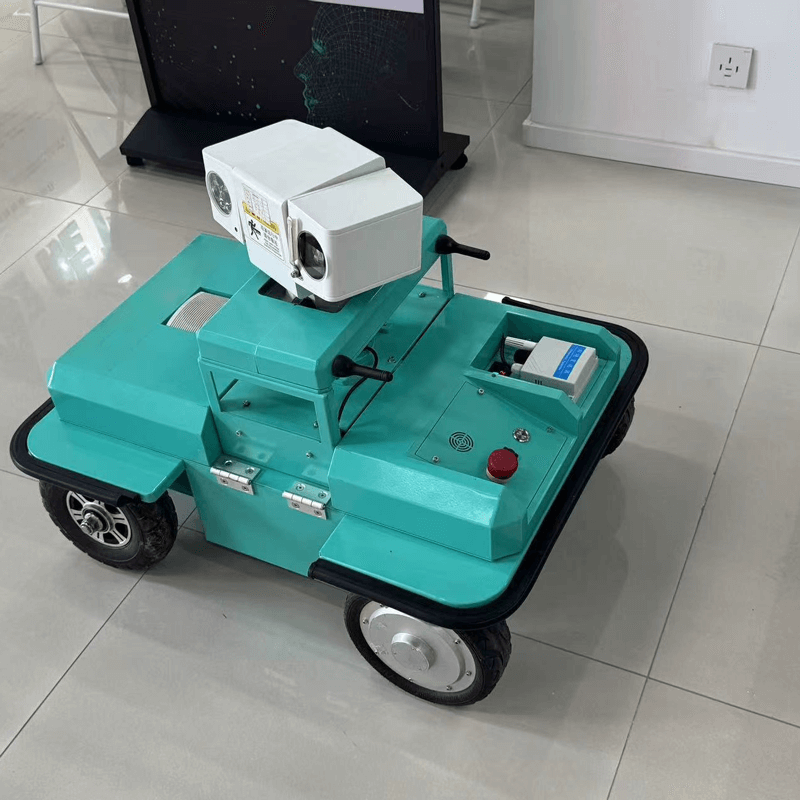

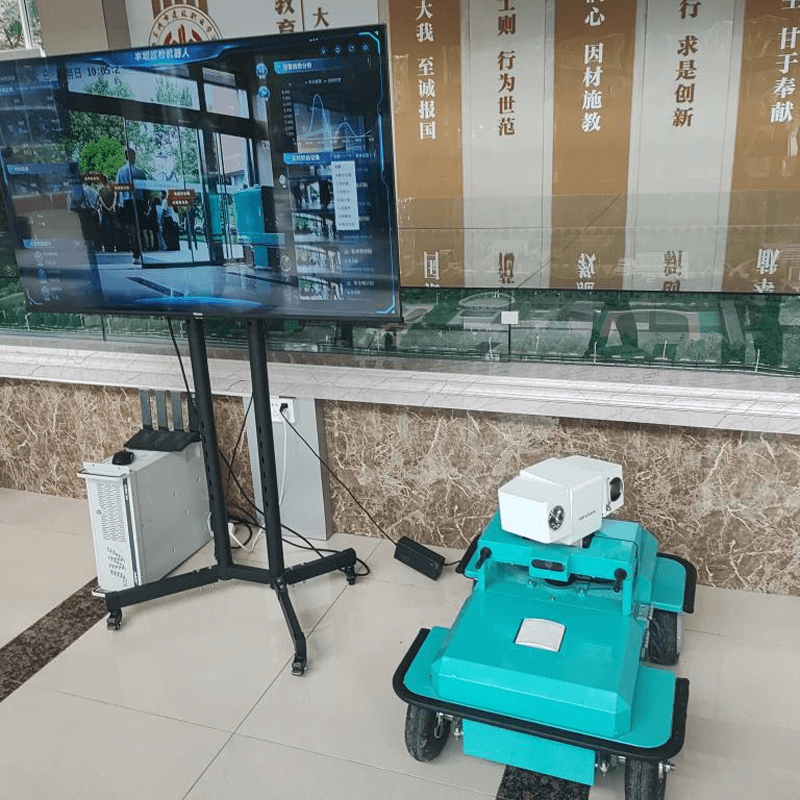

Product Gallery
