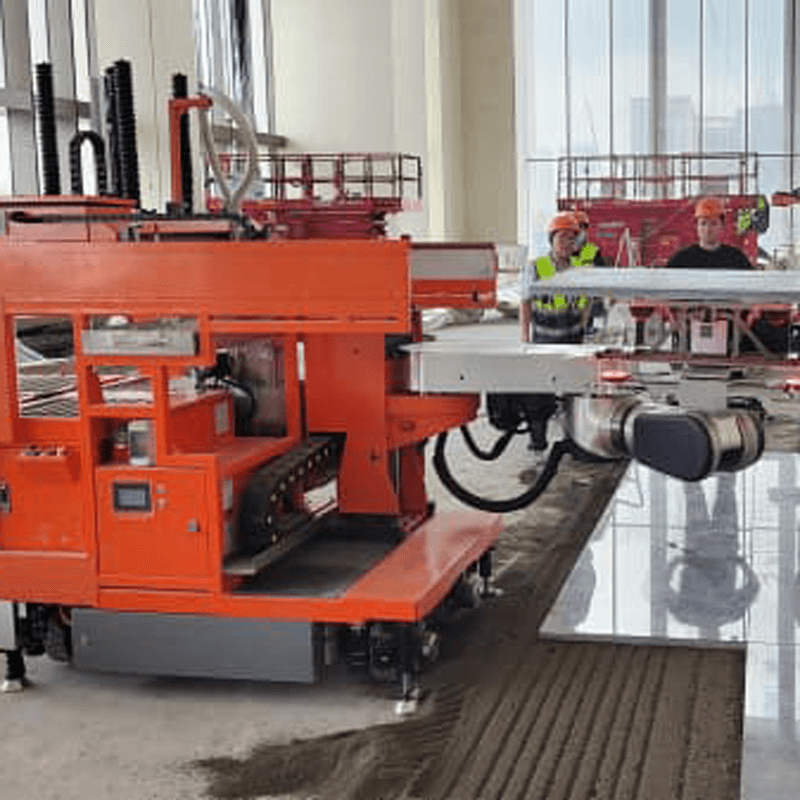

Stone Tile Paving Construction AI Robot
A construction robot for stone brick laying construction
The robot adopts high load robotic arm and omnidirectional moving chassis technology, which can carry large-sized stone bricks under 120kg, achieving full process automation from dry sand leveling, cement back plastering to precise paving. In response to the pain points of low efficiency, high labor intensity, and difficulty in ensuring accuracy in traditional manual paving, this product takes high efficiency, high precision, and high returns as its core advantages to help the construction industry upgrade to intelligence.
Product Description
High efficiency: The comprehensive efficiency of large-scale construction can reach 100 square meters per day, which can replace 4-6 manual workers.
High precision: brick seam width error ± 0.5 mm, height difference between two bricks ± 0.5 mm.
High returns: Save over 60% of labor costs and recover equipment costs within one year.
| Stone Tile Paving Construction AI Robot | |||
| Overall Dimensions | 1300x810x1750 mm | Overall Weight | 870 kg |
| Applicable Tile Type | Ceramic tile | Applicable Tile Specifications | Length: 800 – 1500 mm; Width: 600 – 800 mm |
| Laying Method | Ceramic tile adhesive | Maximum Construction Efficiency | 120 ㎡/d |
| Tile Joint Accuracy | ±0.5 mm (Tile joint width can be adjusted by customers) | Height Difference Between Two Tiles | ±0.5 mm (Manual assistance is required for adjustment in some scenarios) |
| Moving Speed | 0 – 0.7 m/s | Continuous Working Time | 10 h |
| Comprehensive Endurance | 6 h | Power Supply Method | 48VDC |
| Control Method | Remote control or autonomous navigation | Working Mode | Semi – automatic (manual assistance) |
Product Gallery
