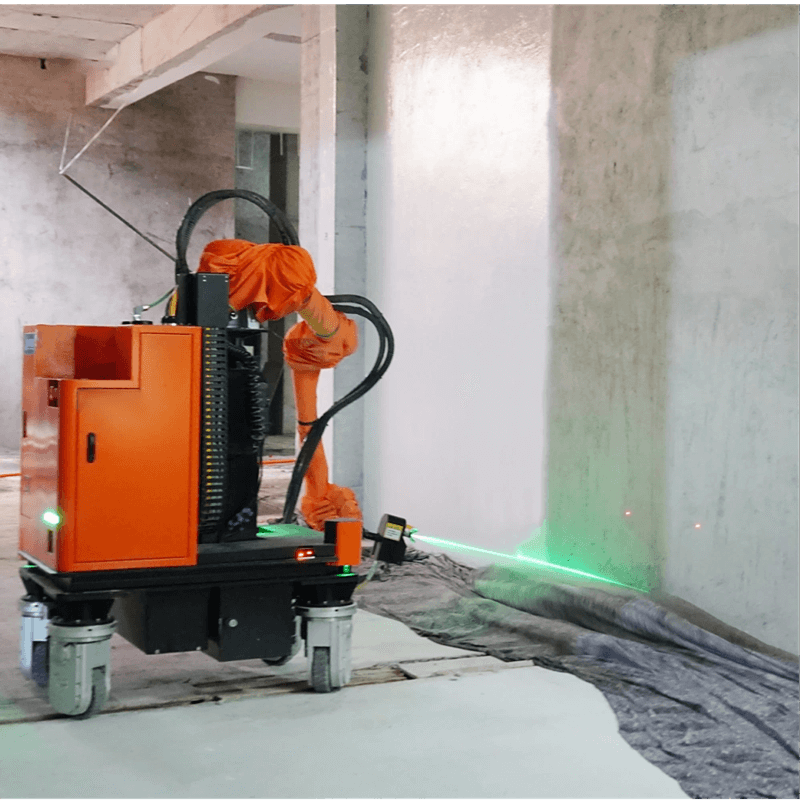

Underground Garage 4.5-meter Spraying Scraping Polishing Integrated Construction AI Robot
A construction robot that integrates putty spraying, putty polishing, and latex paint spraying
The robot integrates putty spraying and scraping, putty polishing, and latex paint spraying, and achieves multifunctional switching through disassembly and assembly of the actuator. The putty spraying function is suitable for walls that require high construction quality, and can effectively reduce the workload of manual putty scraping.
The upper system of the robot consists of a six degree of freedom robotic arm and a lifting system, which enables flexible and complex motion trajectories. Combined with a self-developed robot controller, it achieves synchronous periodic error compensation of sensors. At the same time, based on the automatic navigation system and omnidirectional mobile chassis, the process quality and efficiency of spraying and polishing are improved, achieving high-precision unmanned autonomous spraying and polishing operations.
Product Description
High efficiency: 3-5 times more efficient than traditional manual construction
High precision: The construction height can reach 4.5 meters, and the operation effect is uniform without spots or color differences. In environments with poor working conditions, the polishing quality and efficiency are improved with a posture error of ± 1 ° and a positioning accuracy of ± 5 cm
High returns: One machine for multiple uses, reducing procurement costs and saving over 90% of labor costs
| Underground Garage 4.5-meter Spraying Scraping Polishing Integrated Construction AI Robot | |||
| Overall Dimensions | 1180x850x1750 mm | Weight | 745 kg |
| Construction Height | 4.5 m | Spraying and Scraping Height | 4.5 m |
| Putty Spraying Efficiency | 100 – 200 ㎡/h | Maximum Putty Spraying and Scraping Efficiency | 150 ㎡/h |
| Comprehensive Putty Spraying and Scraping Efficiency | 80 – 100 ㎡/h | Putty Polishing Efficiency | 70 – 100 ㎡/h |
| Latex Paint Spraying Efficiency | 200 – 300 ㎡/h | Material Barrel Capacity | 56 L |
| Rated Power | 8.9 kw | Endurance Time | 6 h |
| Automatic Navigation Repeat Positioning Accuracy | ±5 cm | Obstacle – crossing Height | 3 cm |
| Climbing Angle | 10° | Working Temperature | 0 – 40 °C |
