Four Wheel Laser Ground Leveling Robot
Building Special Robots Suitable For Multi Scenario Applications

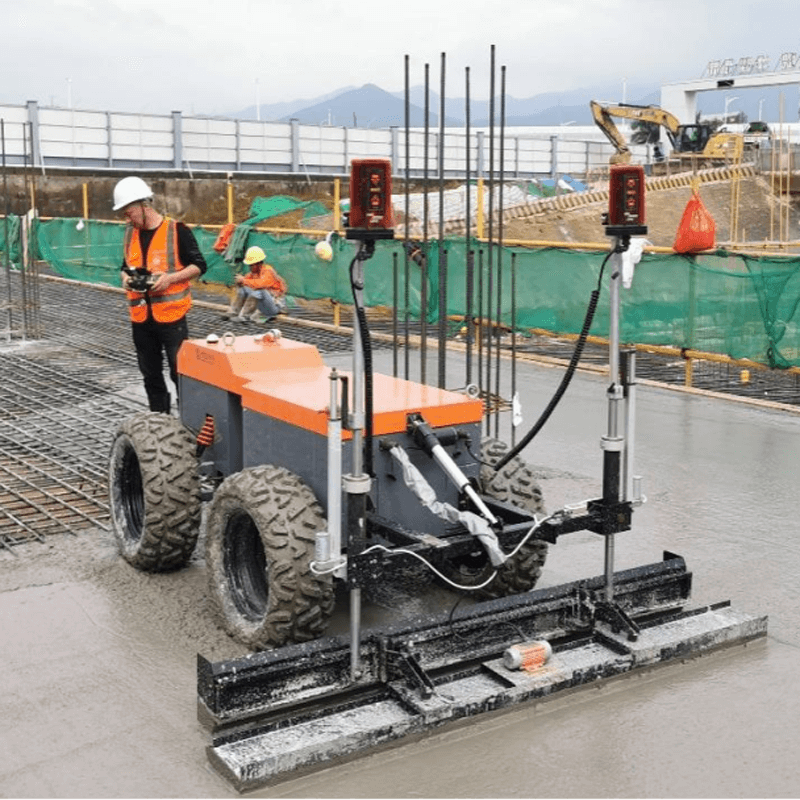

The SmartBuild four-wheel concrete laser screed robot is designed for leveling freshly poured concrete slabs in factories, warehouses, parking garages and commercial buildings. Its 2 m screeding assembly combines laser-guided elevation measurement, electronic leveling and gyroscope adjustment to help maintain consistent floor height throughout construction.
Product Description
High Efficiency: Construction area of 400-600 square meters per hour, can replace 3-5 manual workers
High Precision: The laser detection accuracy can be reduced to 2 millimeters, and the measurement height difference can be controlled within 5 millimeters
High Returns: Save over 60% of labor costs, and recover equipment costs with a construction area of 80000 to 100000 square meters
| Four Wheel Laser Ground Leveling Robot | |||
| Overall Dimensions | 2400x2000x1500 mm | Weight | 370 kg |
| Leveling Width | 2 m | Control Range | 200 m |
| Construction Speed | 0 – 0.4 m/s | Construction Efficiency | 400 – 600 ㎡/h |
| Rated Power | 1.7 kw | Continuous Working Time | 6 h |
| Horizontal Adjustment | Electronic level + gyroscope | Driving Method | Motor drive |
| Control Method | Remote control | ||
