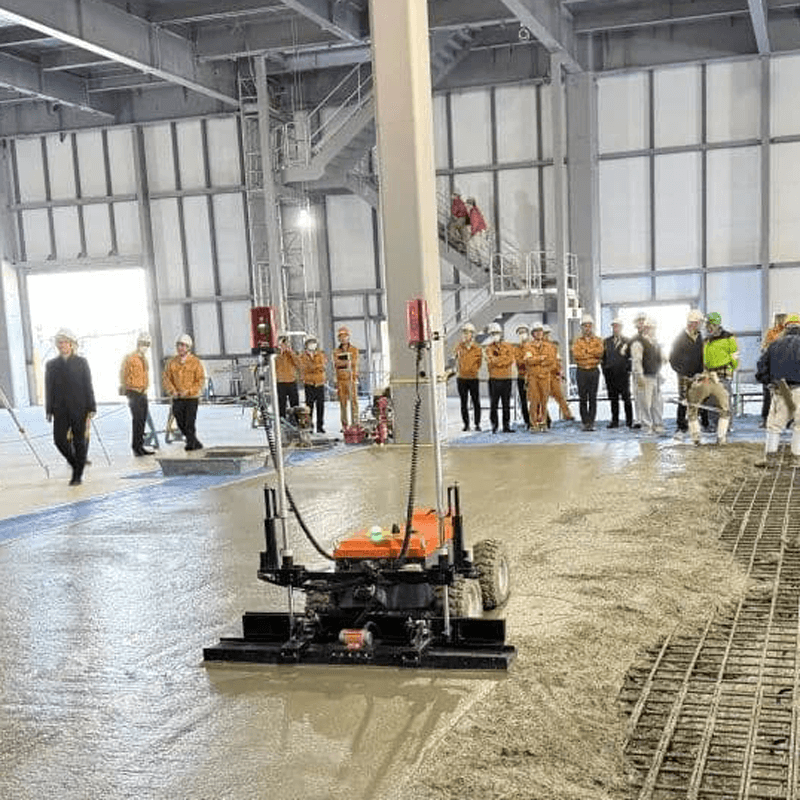

ZP-415A Compact Concrete Leveling Robot
Lightweight remote-controlled concrete leveling equipment for accurate and efficient floor construction.
The ZP-415A is a compact concrete leveling robot designed for contractors who need accurate floor leveling in a lightweight and maneuverable machine. With a body weight of 165 kg and a 1.5 m screeding width, it is suitable for medium-sized concrete slabs and construction areas where larger screeding equipment may be difficult to operate.
The robot combines laser-guided elevation measurement, electronic leveling and gyroscope adjustment to help maintain consistent floor height. Remote control operation allows the operator to manage the machine from a safe distance while reducing repetitive manual leveling work. Under suitable site conditions, the ZP-415A can cover approximately 200–300 m² per hour and operate for up to six hours.
Product Description
Compact and Easy to Deploy: With a weight of 165 kg and compact dimensions of 1,640 × 1,500 × 1,500 mm, the ZP-415A is easier to transport and maneuver than larger concrete screeding equipment.
Laser-Guided Leveling: The laser receiver, electronic level and gyroscope work together to adjust the screeding assembly and help maintain consistent concrete floor elevation.
Remote-Controlled Operation: A control range of up to 200 m allows the operator to manage machine movement and leveling work remotely.
| ZP-415A Compact Concrete Leveling Robot | |||
| Overall Dimensions | 1640x1500x1500 mm | Weight | 165 kg |
| Leveling Width | 1.5 m | Control Range | 200 m |
| Construction Speed | 0 – 0.45 m/s | Construction Efficiency | 200 – 300 ㎡/h |
| Rated Power | 1.5 kw | Continuous Working Time | 6 h |
| Horizontal Adjustment | Electronic level + gyroscope | Driving Method | Motor drive |
| Control Method | Remote control | ||
Product Gallery
