Crawler Screeding Construction AI Robot
A construction robot used for leveling and finishing construction of building floors
The robot adopts track chassis cruising technology and intelligent swing arm algorithm to achieve unmanned autonomous movement and high-precision construction. At the same time, zero carbon emissions during the construction process can be achieved through the independently developed battery driven control platform. The whole machine has a small volume, flexible maneuverability, simple operation, high flatness of the construction ground, and a dense and uniform ground.
Product Description
High Efficiency: The diameter of the wiping disc reaches 880 millimeters, and the construction area can reach 200-400 square meters per hour
High Precision: The construction width can reach 2 meters, and the flatness deviation is controlled within 5 millimeters
High Returns: Save labor costs by over 60%, and recover equipment costs with a construction area of 80000 to 100000 square meters
| Crawler Screeding Construction AI Robot | |||
| Overall Dimensions | 2200x880x850 mm | Weight | 300 kg |
| Trowel Disc Rotating Speed | 0 – 150 rpm | Swing Diameter | 880 mm |
| Maximum Swing Arm Angle | Rated Power | Control Range | 200 m |
| Construction Speed | 0 – 0.75 m/s | Construction Efficiency | 200 – 400 ㎡/h |
| Rated Power | 4000 w | Continuous Working Time | 4 h |
| Driving Method | Motor drive | Control Method | Remote control |

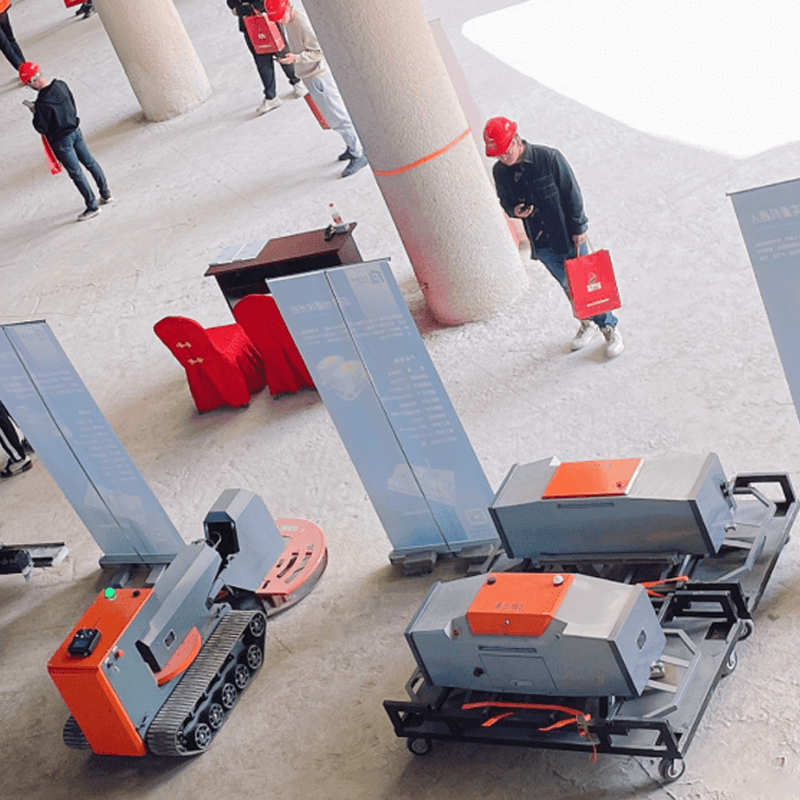

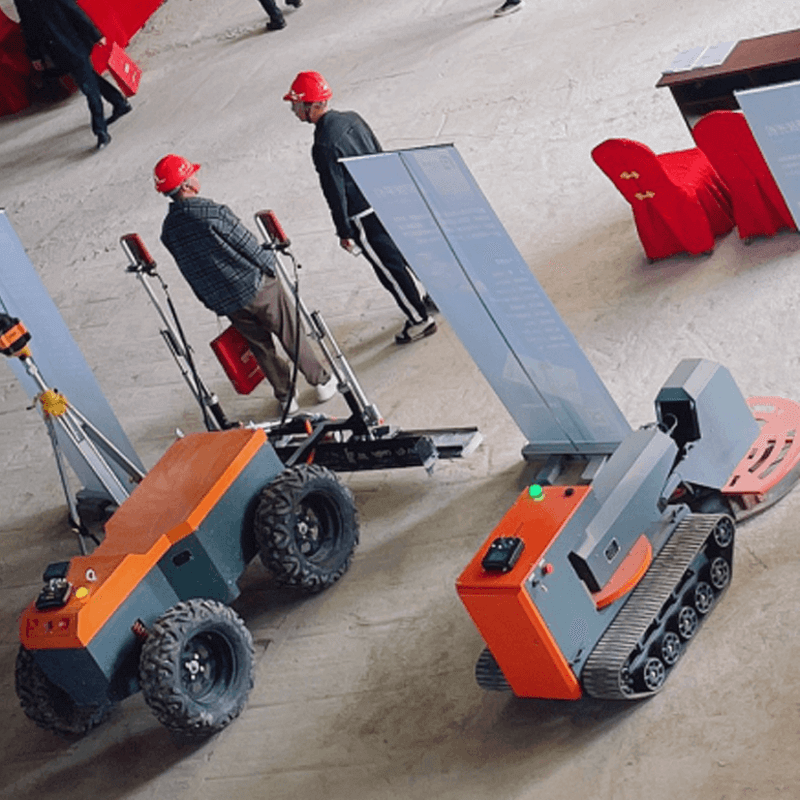

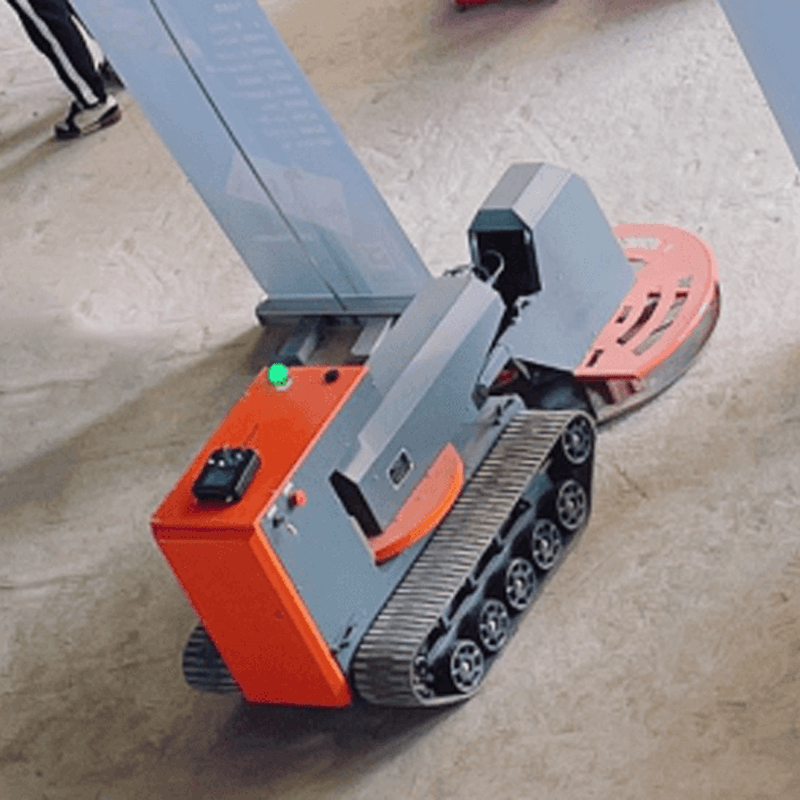

Product Gallery
