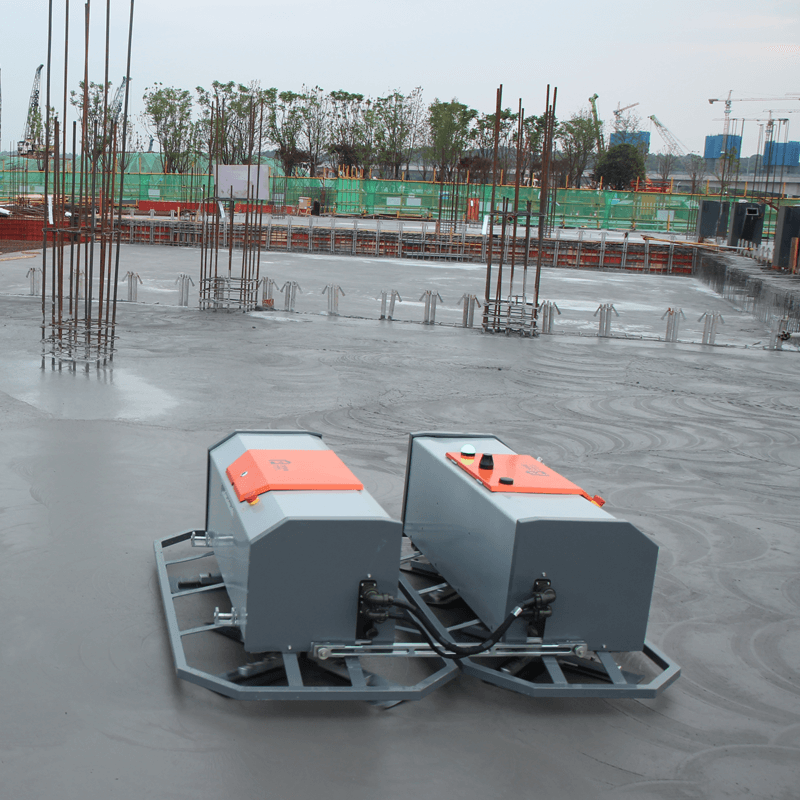

Four Disks Trowelling Construction AI Robot
A construction robot used for building floor smoothing construction
The robot adopts non wheel chassis technology and intelligent motion algorithms, which can achieve unmanned autonomous movement and high-precision construction. At the same time, zero carbon emissions during the construction process can be achieved through the independently developed battery driven control platform. The whole machine has a small volume, flexible maneuverability, simple operation, and high construction gloss.
Product Description
High Efficiency: The diameter of the cutterhead reaches 770 millimeters, and the construction area can reach 300-500 square meters per hour
High Precision: The construction width can reach 1.4 meters, and the flatness deviation is controlled within 5 millimeters
High Returns: Save labor costs by over 60%, and recover equipment costs with a construction area of 80000 to 100000 square meters
| Four Disks Trowelling Construction AI Robot | |||
| Overall Dimensions | 1525x1530x530 mm | Weight | 260 kg |
| Trowel Disc Rotating Speed | 0 – 130 rpm | Swing Diameter | 770 mm |
| Control Range | 200 m | Construction Speed | 0 – 0.75 m/s |
| Construction Efficiency | 300 – 500 ㎡/h | Rated Power | 5.5 kw |
| Continuous Working Time | 3 h | Driving Method | Motor drive |
| Control Method | Remote control | ||
Product Gallery
