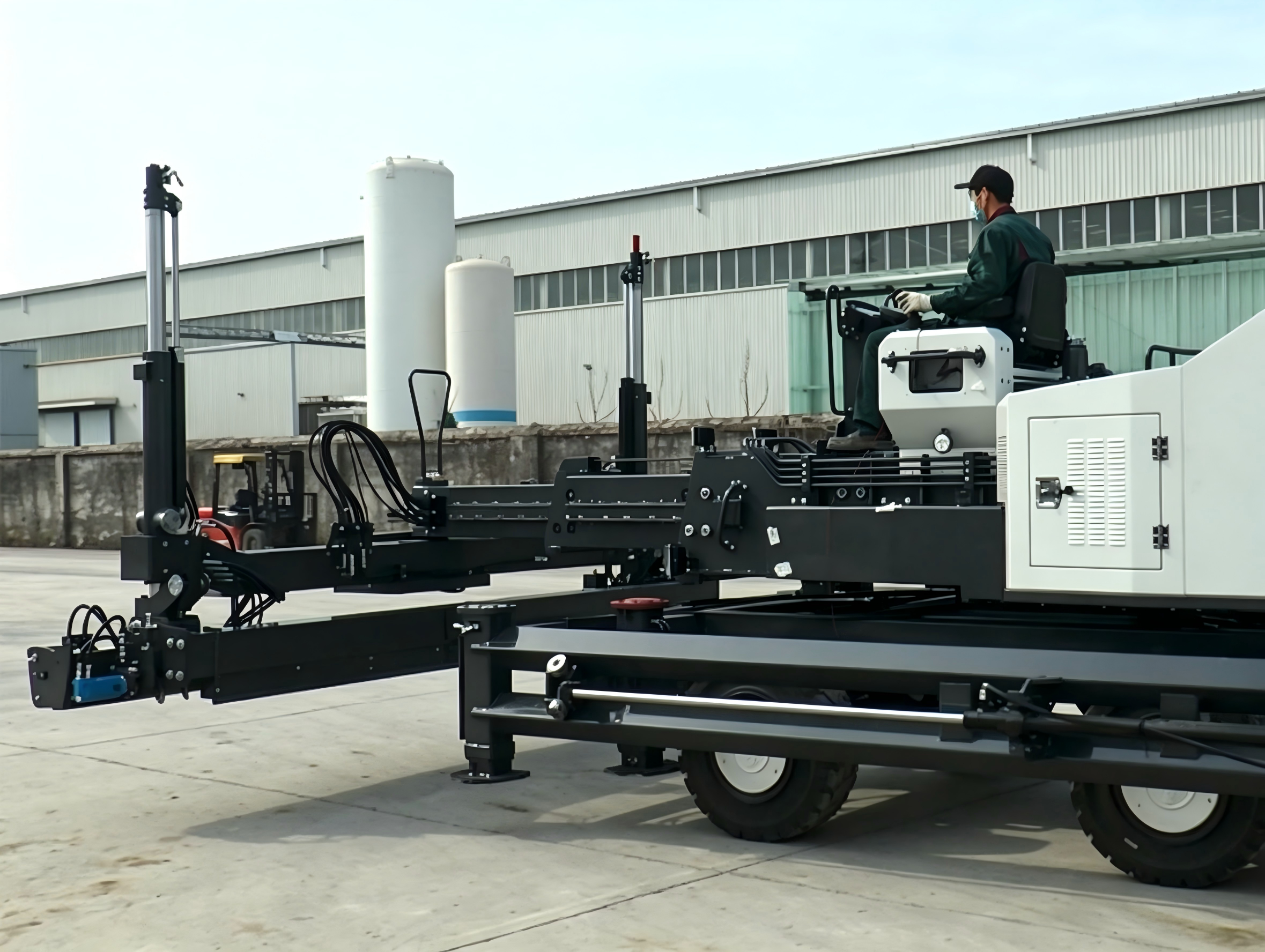

Large-Scale Laser Guided Screed JP31
The Large-Scale laser guided screed is a piece of modern, large-scale flooring construction equipment that combines high precision with high efficiency. It is primarily used for large-area concrete paving projects—such as large industrial plants, modern logistics warehouses, airport runways, expansive plazas, and exhibition centers—where there are stringent requirements for floor flatness and super-flatness. This equipment transforms traditional manual leveling and vibration methods by integrating leveling, screeding, vibrating, and compacting into a single, highly efficient, one-pass operation.
Product Description
Technical Specifications
| Engine | Screed Head | ||
| Model | Yanmar | Type | Laser leveling |
| Type | Diesel engine, 4-stroke water-cooled, 4-cylinder | Width | 3850mm |
| Power | 53.7kw/2100r/min | Paving Method | Auger paving |
| Oil Capacity | 10.2L/4.5L | Auger Power | Hydraulic motor |
| Fuel Consumption | 227g/kWh | Exciting Force | 3000N |
| Travel System | Vibration Frequency | 60Hz | |
| Drive | Hydraulic four-wheel drive | Swing Angle | ±45° |
| Steering Mode | Front-wheel/Four-wheel/Crab-type | Screed Head Leveling Control | Proportional control |
| Wheels | Anti-slip tires | Screed Head Height | 560mm |
| Outriggers | Four-leg self-leveling | Control Accuracy | ±1.5mm |
| Travel Speed | 0-8km/h | Operation Mode | |
| Working Speed | 22m²/min | Seat Position | Front-mounted |
| Laser Control System | Forward & Reverse | Joystick control, continuously variable | |
| Control Mode | Microcomputer laser scanning | Steering | Joystick hydraulic intelligent control |
| Control Effect | Flat, sloped or double-sloped surfaces | Telescopic Arm | Joystick control, continuously variable |
| Cleaning System | Dimensions & Weight | ||
| Power | Hydraulic motor | Maximum Overall Dimensions During Operation | 5600×4375×3575mm |
| Maximum Inlet Water Pressure | 0.5MPa | Weight | 8750kg |
| Water Tank Capacity | 150L |
